AUS 84 — Plans in Western Australia (Sheet 6), WA Nautical Chart

For skippers, pilots, and coastal crews working Jurien Bay, Port Denison & Port Gregory

Three large-scale harbour plans for Jurien Bay, Port Denison, and Port Gregory, delivering close-quarters clarity at 1:25,000 · 1:12,500 · 1:15,000 on UTM — ideal for precise pilotage, berth approaches, and waypoint checks along WA’s mid-west coast.

---

Why skippers choose this chart

• 🧭 Harbour-scale detail — Jurien Bay 1:25,000; Port Denison 1:12,500; Port Gregory 1:15,000 for approaches, swing basins, and wharf work.

• 🚢 Traffic & hazards awareness — Clear depiction of channels, aids, drying banks, and fringing reefs.

• 🛰️ UTM grid precision — Straightforward plotting for fixes, bearings, and cross-checks.

• 📍 Exact bounds — All limits listed below for quick position checks.

• 🗺️ Deck-ready materials — Soft-matte writeable laminate face for correction/grease pencils.

• 🇦🇺 Printed in Australia — Colour-managed, hand-checked.

---

Coverage

• Plan — AUS 84/1: Jurien Bay

  • Scale: 1:25,000 · Projection: Universal Transverse Mercator

  • Bounds: N 30°13.30′ S · S 30°21.80′ S · E 115°03.13′ E · W 114°55.20′ E

  • Publication: 14-Aug-2009 · Latest Edition: 24-Jan-2020

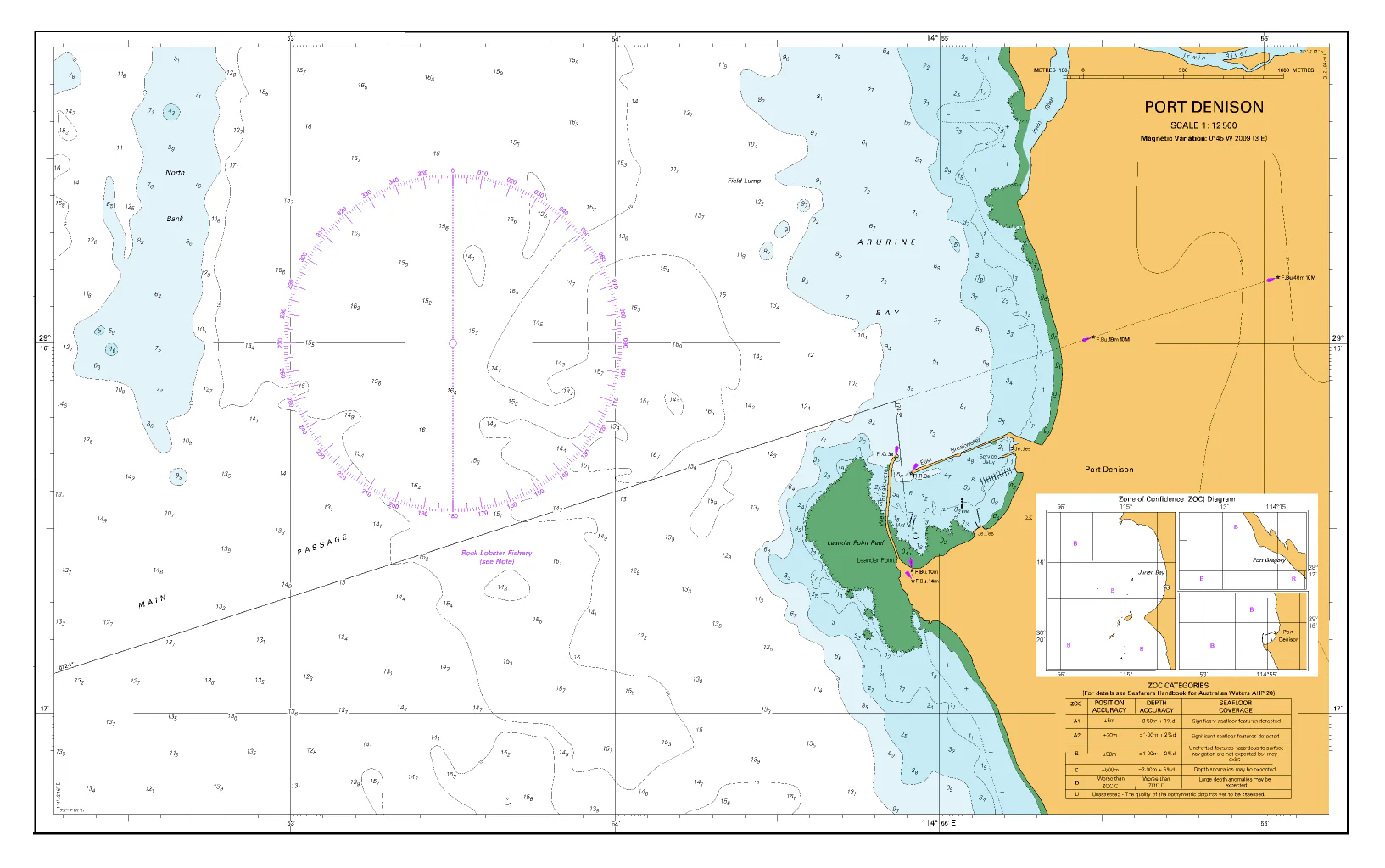

• Plan — AUS 84/2: Port Denison

  • Scale: 1:12,500 · Projection: Universal Transverse Mercator

  • Bounds: N 29°15.20′ S · S 29°17.27′ S · E 114°56.20′ E · W 114°52.27′ E

  • Publication: 14-Aug-2009 · Latest Edition: 24-Jan-2020

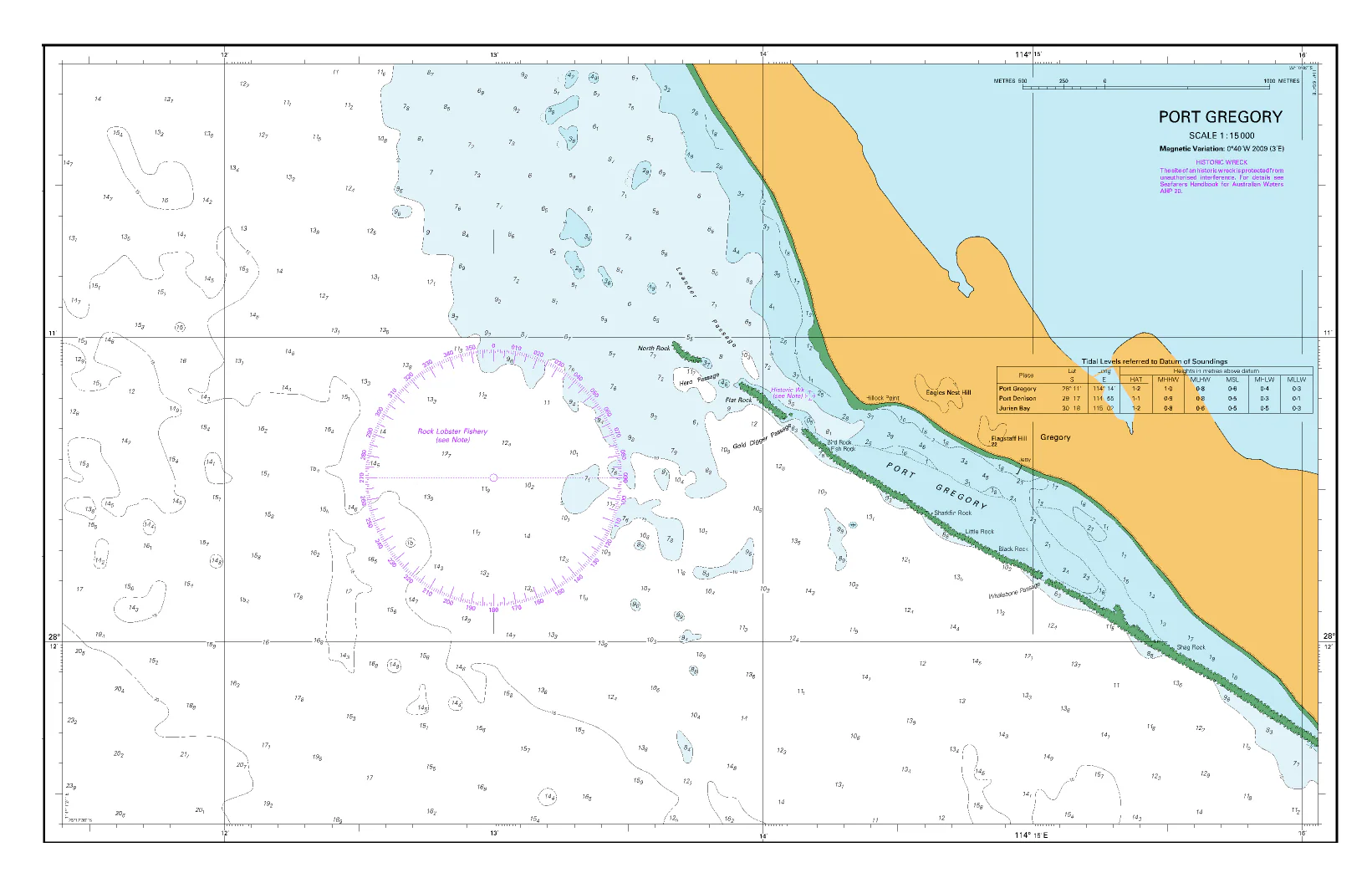

• Plan — AUS 84/3: Port Gregory

  • Scale: 1:15,000 · Projection: Universal Transverse Mercator

  • Bounds: N 28°10.10′ S · S 28°12.60′ S · E 114°16.06′ E · W 114°11.40′ E

  • Publication: 14-Aug-2009 · Latest Edition: 24-Jan-2020

---

Premium materials & finishes

• Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.

• Laminated (soft-matte front / gloss back, edge-sealed) — Front is low-glare and writeable with chart-correction/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.

We use a soft-matte writeable face with a gloss reverse so you can annotate fixes, tides, ETAs and pilotage notes directly on the chart, then clean down between passages.

---

On-board & ashore use

• 🧭 Pilotage & berth approaches — Plot channels, clearing bearings, and contingency turns.

• 📒 Crew briefings — Clear layouts for marks, hazards, and waypoint verification.

• 🛠️ Bridge/club display — Durable laminated option for training rooms and noticeboards.

• 🎁 Gift for skippers — Practical WA harbour plans for local crews.

---

Specifications

---

Important note (mariner’s guidance)

This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.

---

Ready to work Jurien, Denison & Gregory with confidence?

Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
